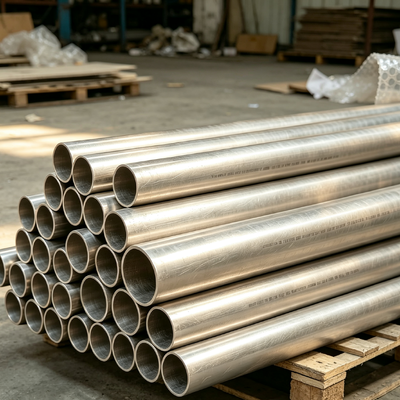

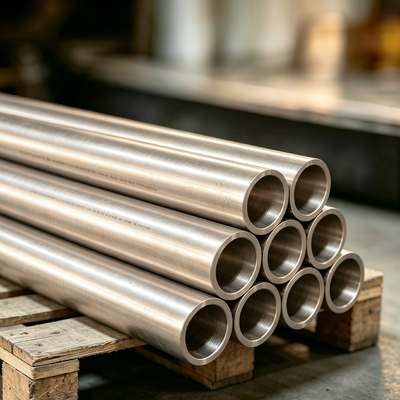

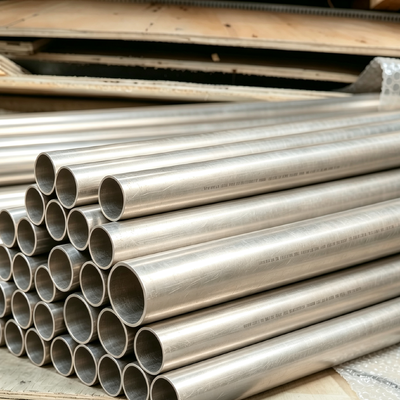

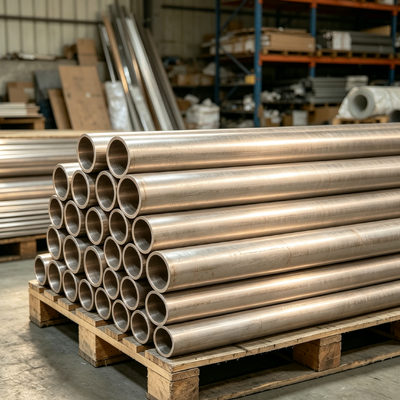

Factory Direct Seamless CuNi 70/30 Nickel Copper Pipe ASME SB466 Class 150 for Marine Engineering
| 起源の場所 | 中国、上海 |
|---|---|
| ブランド名 | TOBO |
| 証明 | ISO/TUV/SGS |
| モデル番号 | 銅ニッケルパイプ |
| 最小注文数量 | 1個 |
| 価格 | 交渉可能 |
| パッケージの詳細 | 標準送料パッケージ |
| 受渡し時間 | 15-30就業日 |
| 支払条件 | T/T、ウェスタンユニオン |
| 供給の能力 | 10 トン/月 |
商品の詳細
| プロダクトNanme | 工場直送 CuNi 70/30 シームレス ニッケル銅管 ASME SB466 クラス 150 フランジ | 製品名 | 銅ニッケルパイプ |
|---|---|---|---|
| 色 | 銅色 | キーワード | 銅の管付属品 |
| 仕様 | カスタマイズされた | アプリケーション | 海洋工学、海水淡水化プラント、熱交換器、海洋石油およびガス |
| 外径 | カスタマイズされた | 表面 | ポリッシュ |
| 延性 | 良い | 形状 | パイプ |
| 硬度 | 1/16 硬い,1-8 硬い | 接合方法 | 溶接、ろう付け、はんだ付け |
| 形 | Round.square | 粉末 か ない か | 粉末ではない |
| 保証 | 1年 | 材料 組成 | 銅ニッケル合金 (通常、Cu/Ni 比 90/10 または 70/30) |
| ヘッドコード | ラウンド | パッキング | パレット、木製のケース |
| ハイライト | CuNi 70/30 seamless nickel copper pipe,ASME SB466 nickel copper pipe,Class 150 flanges copper nickel pipe |
||
製品の説明
Factory Direct CuNi 70/30 Seamless Nickel Copper Pipe ASME SB466 Class 150 Flanges
1.Product Description
Copper-nickel pipe is a seamless or welded tubular product made from copper-nickel alloy, primarily composed of copper (Cu) and nickel (Ni), with minor additions of iron (Fe) and manganese (Mn) to enhance mechanical properties and corrosion resistance. The most common grades are 90/10 (CuNi 90/10, UNS C70600) and 70/30 (CuNi 70/30, UNS C71500). These pipes are manufactured according to international standards such as ASTM B466, B467, B111, and EN 12451, offering excellent dimensional accuracy, uniform wall thickness, and superior surface quality. They are available in a wide range of diameters and schedules to meet diverse engineering requirements.
2. Product Applications
Copper-nickel pipes are widely used in marine engineering, offshore oil and gas platforms, shipbuilding (hull piping, cooling water systems, fire protection systems), seawater desalination plants, power generation stations (condenser and heat exchanger tubes), chemical processing industries, and coastal infrastructure. They are the preferred material for conveying seawater, brine, and other corrosive fluids, as well as for high-temperature steam and hydraulic systems requiring reliable anti-fouling and biofouling resistance.
3. Product Advantages
-
Superior corrosion resistance – Exceptional resistance to seawater, brackish water, and chloride-induced pitting, stress corrosion cracking, and erosion-corrosion.
-
Excellent biofouling resistance – Naturally inhibits marine organism adhesion, reducing maintenance and cleaning frequency.
-
High strength and ductility – Good mechanical properties at both ambient and elevated temperatures, with easy bending, flanging, and welding.
-
Long service life – Proven track record of 30+ years in marine environments with minimal degradation.
-
Low magnetic permeability – Suitable for applications where non-magnetic materials are required.
-
Good thermal conductivity – Efficient heat transfer performance for heat exchanger applications.
-
Fabrication friendly – Compatible with standard welding, brazing, and soldering techniques; readily machinable.
4.Key Technical Parameters
| Parameter | 90/10 (C70600) | 70/30 (C71500) |
| Chemical Composition | Cu: 88.5–90.5%, Ni: 9.0–11.0%, Fe: 1.0–1.8%, Mn: ≤1.0% | Cu: 68.5–70.5%, Ni: 29.0–31.0%, Fe: 0.4–1.0%, Mn: ≤1.0% |
| Density | 8.94 g/cm³ | 8.94 g/cm³ |
| Melting Range | 1,100–1,150°C | 1,170–1,240°C |
| Tensile Strength (min) | 290 MPa | 485 MPa |
| Yield Strength (0.2% offset, min) | 105 MPa | 175 MPa |
| Elongation (min) | 30% (in 50 mm) | 30% (in 50 mm) |
| Hardness (Rockwell B) | 65–80 HRB | 75–90 HRB |
| Electrical Conductivity | ~7% IACS | ~4.5% IACS |
| Thermal Conductivity | ~45 W/(m·K) at 20°C | ~29 W/(m·K) at 20°C |
| Coefficient of Thermal Expansion | ~16.2 × 10⁻⁶ /°C (20–300°C) | ~15.8 × 10⁻⁶ /°C (20–300°C) |
| Operating Temperature Range | –200°C to +300°C | –200°C to +350°C |
| Standard Dimensions | OD: 6.0–400.0 mm; Wall thickness: 0.5–30.0 mm; Length: up to 12 m (or as required) | |
| Manufacturing Standards | ASTM B466/B467/B111, EN 12451, JIS H3300, etc. | |
| Product Forms | Seamless or welded (straight or coiled) |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
